Audio Amp Co | Blackface Classics

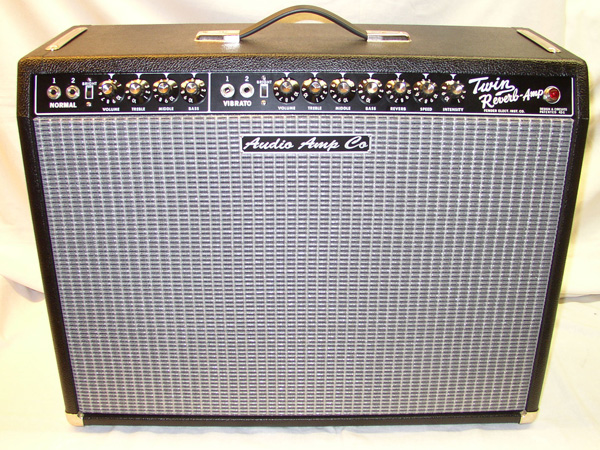

AUDIO AMP CO Twin Reverb

Another BF classic on its own and the biggest of the line. It offers even more power than the Super Reverb, although it runs on the same B+ voltage as the Super Reverb, the Pro Reverb and the Vibroverb.

The Twin Reverb has the advantage of having two »Middle« controls, one in every channel, which gives him a really great tone flexibility. The same circuit and layout improvements like on its entire smaller brothers can be done.

Due to its power, it is also usable for keyboard, e-piano and other instruments. In general its one of the great studio classics and a live standard for many musicians who need and use its power.

Ein weiterer, klassischer BF-Verstärker und der größte seiner Produktlinie. Dieses Modell bietet mehr Leistung als ein Super Reverb, trotzdem er mit der selben Betriebsspannung arbeitet wie der Super Reverb, der Pro Reverb und der Vibroverb.

Der Twin Reverb hat den unschätzbaren Vorteil, dass er über zwei »Mitten« Regler verfügt, einer in jedem Kanal, dies offeriert ihm eine sehr große tonale Flexibilität.

Die selben Verbesserungen bzgl. Schaltungsdesign und Layout können auch hier umgesetzt werden. Bedingt durch seine Leistung ist der Verstärker auch für Keyboard, E-Piano und andere Instrumente geeignet. Generell handelt es sich um einen der größten Studioklassiker, der Verstärker stellt für viele Musiker, die ihn gerne verwenden, eine Art »Live« Standard dar, wenn man die Leistung braucht, die er kann und hat.

Specs

  • Circuit: Classic BF style circuit, improved
  • Rectifier: Diode, full wave
  • Power Amp: 4×6L6GC, Class A/B push/pull, 85W RMS
  • Bias Circuit: adjustable negative grid bias
  • Driver/PI stage: 12AT7/ECC81
  • Vibrato stage: 12AX7/ECC83
  • Reverb Mix: 12AX7/ECC83
  • Reverb Driver: 12AT7/ECC81
  • Input stage VCh: 7025/E83CC
  • Input stage NCh: 7025/E83CC
  • Controls: Intensity, Speed, Bass, Middle, Treble, Volume, Bass, Middle, Treble, Volume, Bright on/off (both channels)
  • Inputs: Vibrato Hi and Lo (-6dB), Normal Hi and Lo (-6dB)
  • Output: two parallel speaker outputs
  • Output Z: 4Ω (others on request)
  • Features: Bias test jacks, 4mm banana type, MERCURY MAGNETICS® USA »Tone Clone« transformers

Options

  • 12″ speakers
  • Available as Head or 2×12″ Combo (lightweight solid spruce)
  • 135W UL version
  • Adjustable negative grid bias or cathode bias switch
  • Hot rodded Normal channel
  • Reverb & Tremolo on both channels, phase correction
  • EQ voicing (BF, Dumble, Tweed or British)
  • Improved »Middle« controls, both channels
  • Line Out
  • Colour of pilot lamp lens (red, amber, blue, green or purple)
  • Colour/shape of control knobs
  • Strap handle style and type
