AUDIO AMP CO Plexi 18 Hot Rod II

A lot of flexibility and variability in both channels, all gain structures can be varied via the optional switches. Two different tones available via A/B box, likes all types of pickups and speakers.

Very pure tone, great playing dynamics. I always wanted to have something different that the previous models, using the possible space inside the chassis to the max.

A couple of years ago I had the idea of combining a classic VOX® AC15 type circuit, which is the Pentode channel with something totally different, a modded and tweaked FENDER® BF-style circuit into the classic 18W power amp without any negative feedback. Further I added as much as possible switchable features, to get more variability in tone in those roughly pure channels, which gives this amp a certain character, totally different than the other two 18W models. As with the other two models, the EL84 version is more dirty and overdriven and the 6V6 version keeps cleaner.

Größtmögliche Flexibilität und Variabilität in beiden Kanälen, alle Gain-Strukturen können mit den optionalen Schaltern verändert und variiert werden. Zwei völlig unterschiedliche Sounds verfügbar mit einer A/B-Box, der Verstärker verträgt sich mit allen Arten von Pickups und Lautsprechern. Sehr purer, ehrlicher Ton, große Spieldynamik.

Ich wollte immer schon eine etwas andere Variante als die beiden Vorgängermodelle, unter maximaler Nutzung der im Innern verfügbaren freien Fläche im Chassis.

Vor einigen Jahren hatte ich die Idee eine sehr alte und klassische VOX® AC15 Schaltung, in diesem Fall hier handelt es sich um den Pentoden Kanal, mit etwas völlig anderem und unterschiedlichem zu Kombinieren, einer modifizierten und total ausgereizten FENDER® BF-Stil Schaltung, all dies gekoppelt an die klassische 18W Endstufe ohne Gegenkopplung. Desweiteren habe ich so viele schaltbare Features wie möglich hinzugefĆ¼gt, um mehr Variabilität im Ton zu haben als bei den anderen 18W Modellen.

So wie auch bei den anderen beiden 18W Modellen ist die Endstufe mit EL84 bestückt deutlich schmutziger und rauher im Ton und die 6V6 Variante bleibt länger cleaner und ist in Summe weicher und braver im Ton.

Specs

  • Circuit: AUDIO AMP CO circuit and layout
  • Rectifier: GZ34/5AR4
  • Power Amp: EL84 or 6V6, Class A push-pull, 18W
  • Bias Circuit: cathode bias
  • Driver/PI stage: ECC802S
  • EF86 Ch.: EF86 (pentode)
  • US Ch.: ECC803S

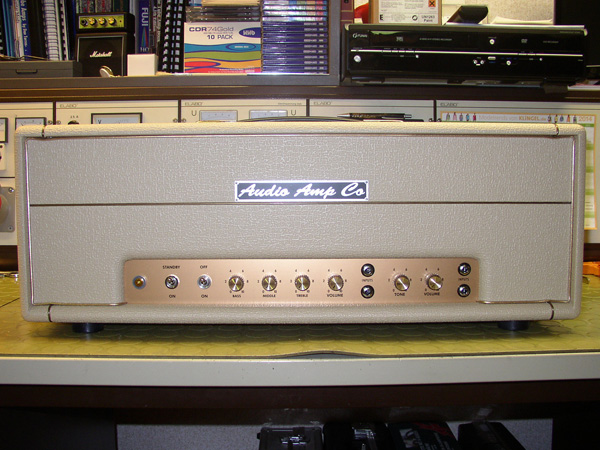

  • Controls: Bass, Middle, Treble, Volume, RTC (with six positions), Volume
  • Inputs: EF86 Hi, Lo (-6dB), US Ch. Hi, Lo (-6dB)

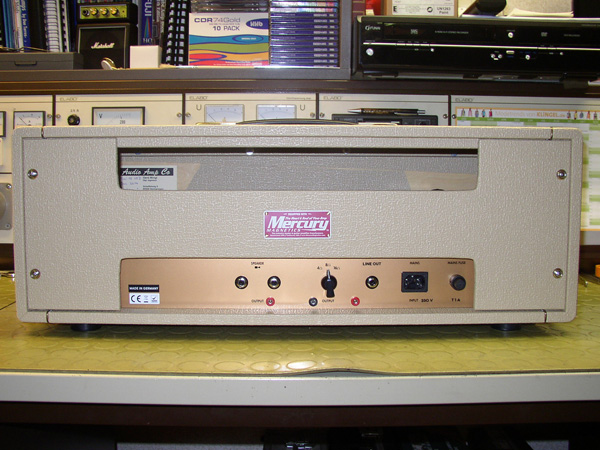

  • Output: two speaker outputs
  • Output Z: switchable 4/8/16Ω

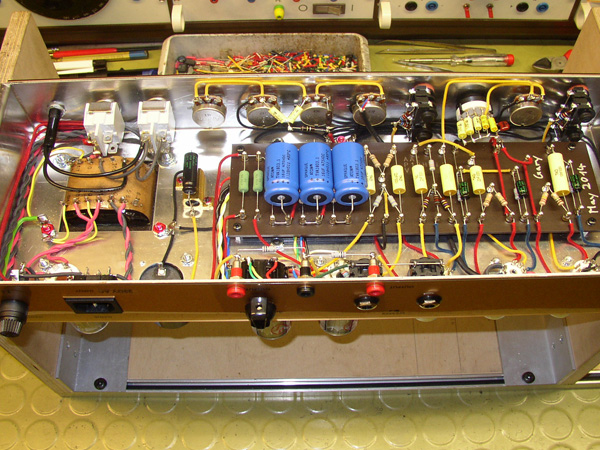

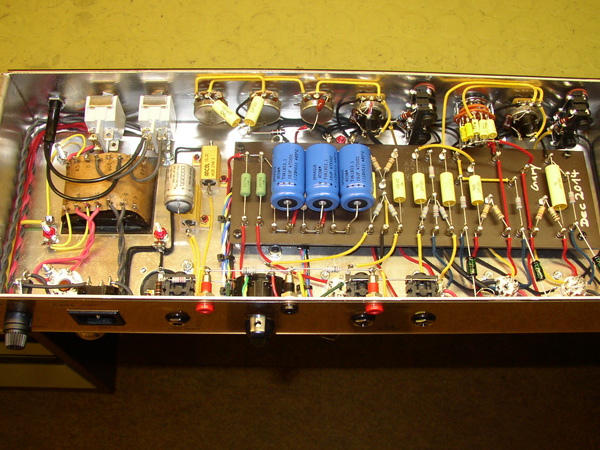

  • Features: aluminium chassis, hand wired, point to point on turret board, tube retainers, Bias test jacks, 4mm banana type, MERCURY MAGNETICS® USA transformers

Options

  • EL84 or 6V6 power tubes (different sockets, sorry)
  • Line Out
  • Hi Bias/Lo Bias switch
  • Fat/Tight switch for Pentode/British channel
  • Fat/Tight switch for US channel input gain stage
  • Fat/Tight switch for US channel 2nd gain stage
  • Push/pull bright switch for both channels
  • EQ voicing (BF, Dumble, Tweed, British) for US channel

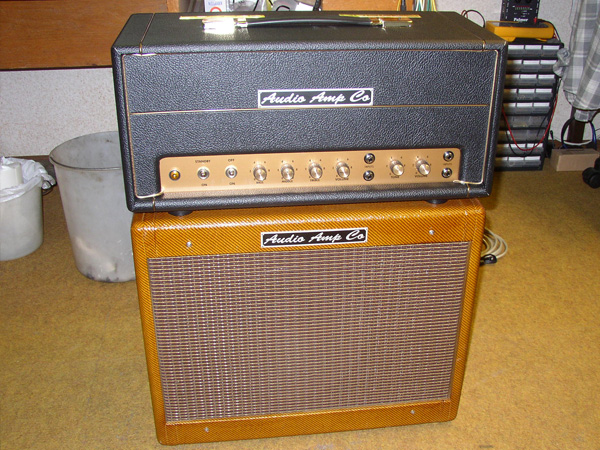

  • Available as Top/Head, only
  • Colour/shape of control knobs
  • Colour of pilot lamp (amber, red or green)
  • Strap handle design and style
