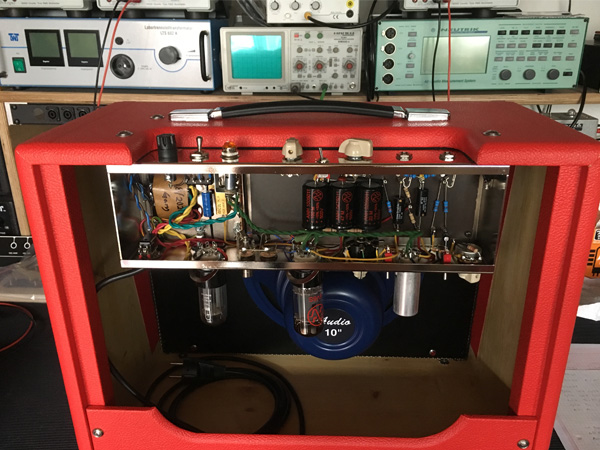

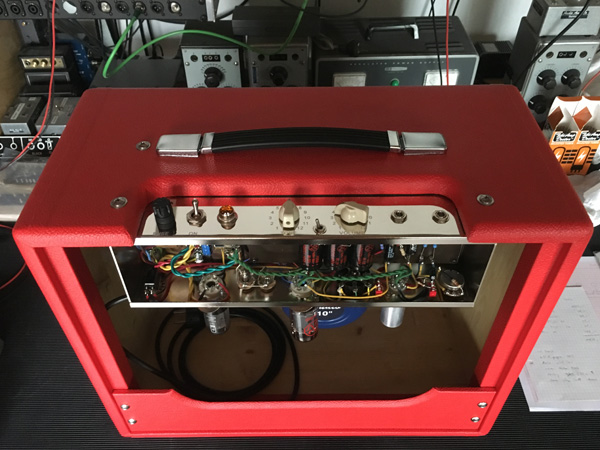

AUDIO AMP CO Princeton 5F2

Technically identical to the 5F1 Champ but with a tone control beneath the volume pot on the top of the chassis and more space for options inside the chassis.

Originally designed as a student and beginner amp we have to see it today as a professional rehearsal, studio/recording, backstage and living room amp.

This amp goes from clean to crunch without any pedal, for lead playing just add a good overdrive pedal or a booster. It is capable of producing sounds from blues to hard rock in an always ear friendly loudness. Amp sounds best with a 12″ speaker in the big cab, likes single coils and humbuckers. Great flexibility when loaded with all possible options!

Technisch identisch mit dem 5F1 Champ, allerdings mit einem Tone Regler auf der Oberseite des Chassis und weit mehr Platz im Innern des Chassis.

Das ursprüngliche Design war als Studenten- und Anfänger-Verstärker ausgelegt, heutzutage sollte man das allerdings völlig anders betrachten und den Verstärker eher als professionellen Übungsverstärker, Studiogerät, Aufnahmeverstärker, Backstageverstärker oder Wohnzimmerübungsamp sehen.

Der Verstärker geht fließend von clean in crunch über, ohne ein Pedal vorzuschalten, für etwas mehr Gain kann jeder gute Overdrive oder Booster problemlos vorgeschaltet warden. Der Verstärker kann Sounds von Blues bis Hard Rock produzieren, immer in einer ohrenfreundlichen Lautstärke.

Der Verstärker klingt generell am Besten mit einem guten, hochwertigen 12″ Lautsprecher im großen Gehäuse (Tweed Deluxe Style Variante), er verträgt sich gut mit Single Coil und Humbucker Pickups. Sehr flexibel, wenn mit allen möglichen und verfügbaren Optionen bestückt!

Specs

  • Circuit: original 5F2 circuit from 1958 with improvements
  • Rectifier: 5Y3GT or GZ34/5AR4
  • Power Amp: 1× 6V6, Class A single ended, 5W
  • Bias Circuit: cathode biased
  • 1st Gain/Driver: 12AX7/ECC83
  • Controls: Volume, Tone
  • Inputs: Hi 1, Lo 2 (-6dB)
  • Output: two speaker outputs on jacks
  • Output Z: 4Ω, 8Ω or 16Ω switchable

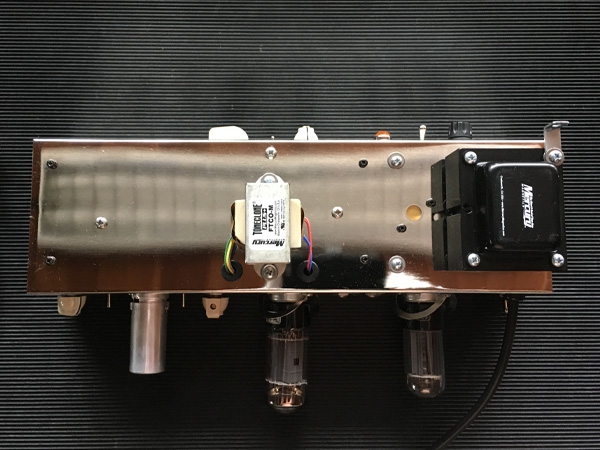

  • Features: steel chassis, hand wired, point to point on turret board, tube clamps, Standby switch, big cabinet like Tweed Deluxe (fits all type of speakers), MERCURY MAGNETICS® USA transformers

Options

  • Fat/tight switch for input stage
  • Tone response switch (for Tone control)
  • Wild control (adjustable negative feedback)
  • Negative grid bias or cathode bias switch
  • 10″ or 12″ speaker
  • Available as 1×10″ or 1×12″ Combo (lightweight solid spruce)
  • Colour of pilot lamp (red, amber, blue, green or purple)
  • Colour/shape of control knobs
  • Strap handle style and type
