Audio Amp Co | Plexi Classics

AUDIO AMP CO Plexi 18 VOS/Tremolo

I changed my opinion after I had an original amp for service in my workshop a few years ago. This model is pure and honest in tone, a distinctive experience to play through. It offers enough gain with most guitars and pickups; otherwise a good overdrive pedal or booster can be added.

The basic design is simple to use and to adjust. Just great and pure tube tone with a cool, musical tremolo circuit on the left channel. Try one to see what it can give to you.

Bezüglich dieses sehr speziellen Schaltungsdesigns habe ich im Laufe der Jahre meine Meinung geändert und sehe dies heute anders, als noch vor einigen Jahren, nachdem ich vor einiger Zeit ein Original von 1967 in meiner Werkstatt hatte.

Dieses Model ist sehr pur und sehr ehrlich im Ton, eine unglaubliche Erfahrung damit zu Spielen. Es bietet mit den meisten Gitarren und Pickups genug Gain, falls nicht, kann ein guter Overdrive oder ein guter Booster mit hinzugenommen warden. Das grundsätzliche Design ist einfach zu Nutzen und Einzustellen.

Einfach ein großartiger und purer Röhrenton, kombiniert mit einem musikalischen Tremolo auf dem linken Kanal. Probieren Sie einen, um herauszufinden, was er Ihnen bietet.

Specs

  • Circuit: original British circuit from 1965 with improvements
  • Rectifier: EZ 81
  • Power Amp: EL84 or 6V6, Class A push-pull, 18W
  • Bias Circuit: cathode bias
  • Driver/PI stage: ECC803S
  • Tremolo Channel: ECC803S
  • Fat Channel: ECC803S
  • Controls: Intensity, Speed, Tone, Volume, Tone, Volume
  • Inputs: Tremolo Volume Hi, Lo (-6dB), Fat Volume Hi and Lo, Footswitch jack (Tremolo on/off)
  • Output: two speaker outputs
  • Output Z: switchable 4/8/16Ω

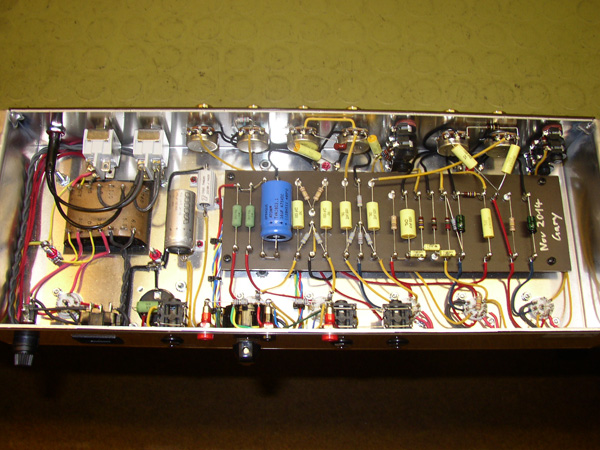

  • Features: aluminium chassis, hand wired, point to point on turret board, tube retainers, Bias test jacks, 4mm banana type, MERCURY MAGNETICS® USA transformers

Options

  • EL84 or 6V6 power tubes
  • Line Out
  • Hi Bias/Lo Bias switch
  • Fat/Tight switch for Normal channel
  • Speaker(s)
  • Available as Head, 1×12″ or 2×12″ Combo
  • Colour/shape of control knobs
  • Colour/style of pilot lamp (amber, red or green)
